PIANO
picture light
Designed by: Horst Lettenmayer

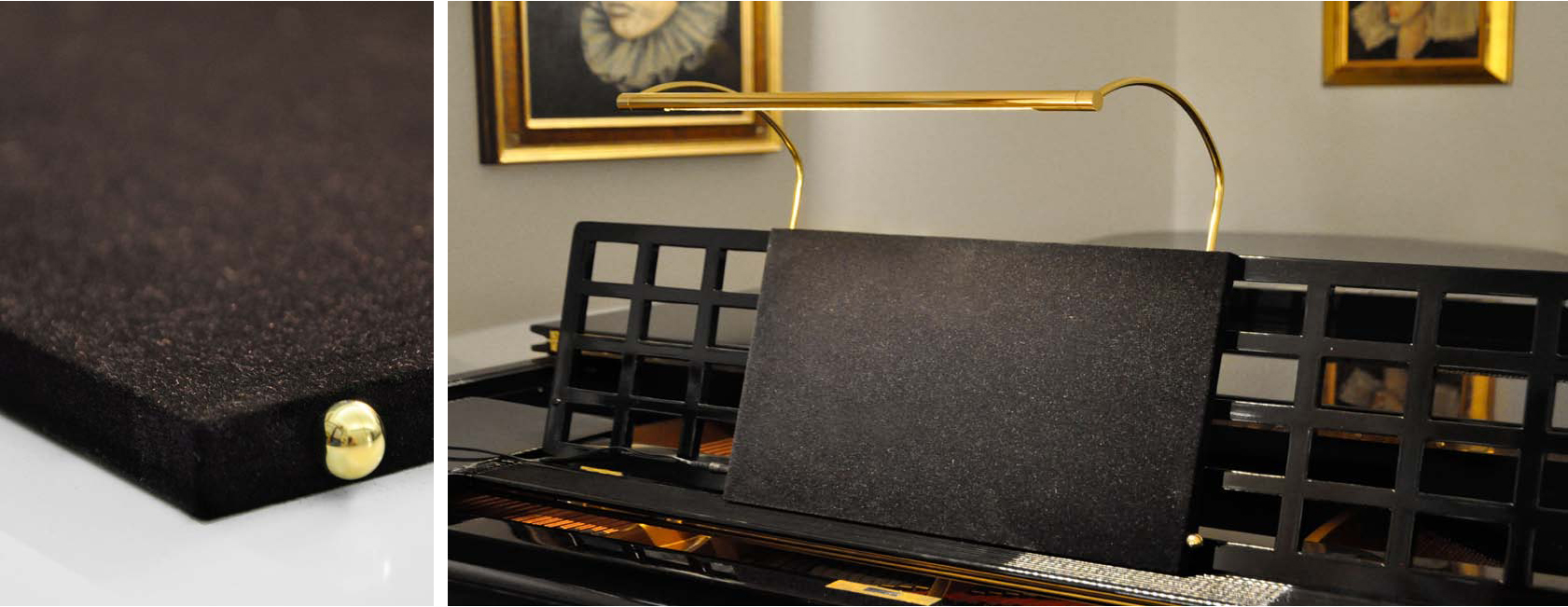

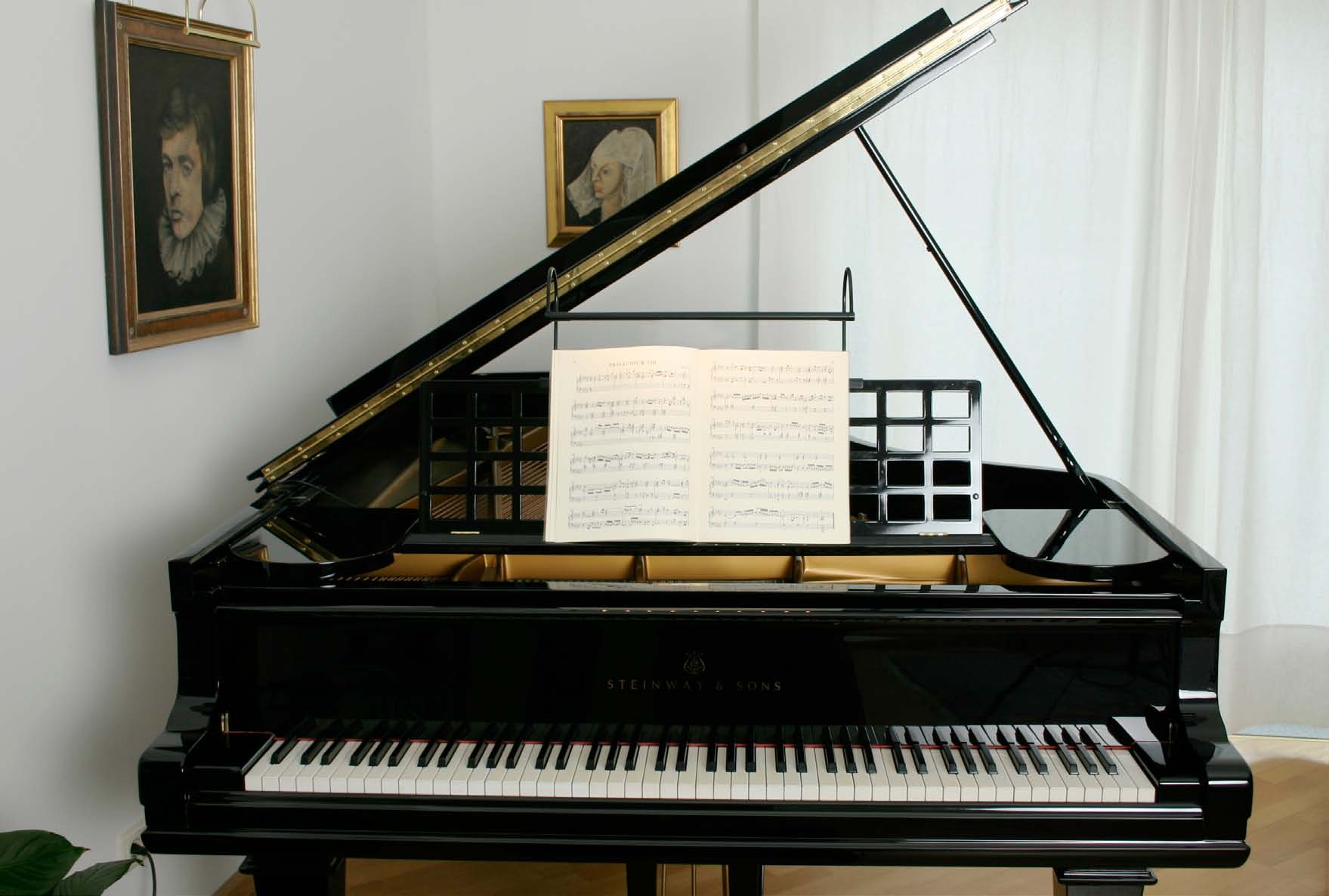

An organist needs proper lighting for sheet music. This light offers a solution for attachment to valuable instruments. The light is height-adjustable, mounted on a flocked board that serves as a music stand. A single power connection is located on the bass side of the keyboard. By unplugging the connector, the board with the light can be removed easily, allowing the grand piano to be closed. The light tube is rotatable, and the brightness can be adjusted by the pianist using the dimming sphere on the board.
Technical Data
Bracket Types:
- Type 19 (190 mm (7.48″)) · Extendable from 290 mm (11.42″) up to 390 mm (15.35″)
Material: Brass
Light source: Mono LED, EEK: F, RA: 90
Plug-in power supply: 220 – 240 V
Secondary Voltage: DC 24V / 12 W
Tableau dimensions: 380 x 250 x 12 mm
complete weight: 900 g
Light tube rotatable: Ø 14 mm
Bracket rod: Ø 6 mm
Bracket extension: 190 mm
LED Colors:
- 2400 Kelvin Warm RA 80+ / 750 Lm / m
- 2700 Kelvin Neutral RA 94+ / 1640 Lm / m
- 3100 Kelvin Daylight RA 94+ / 1680 Lm / m
Light length:
- 360 mm (14.17″) Power: 2,7 Watt
Luminaire complete with LED light source, touch dimmer, plug-in power supply (4 meter cable length) and black flocked panel.
Available in the following surfaces:
