MONO
picture light
Designed by: Horst Lettenmayer

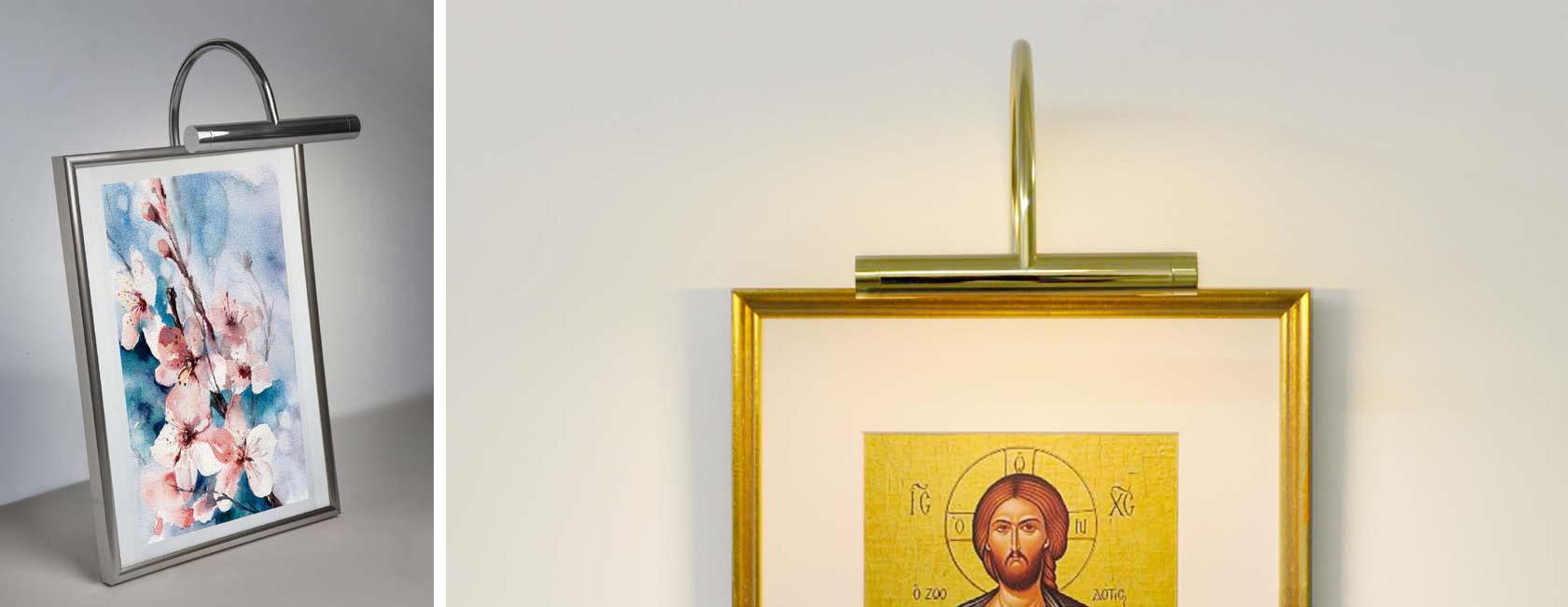

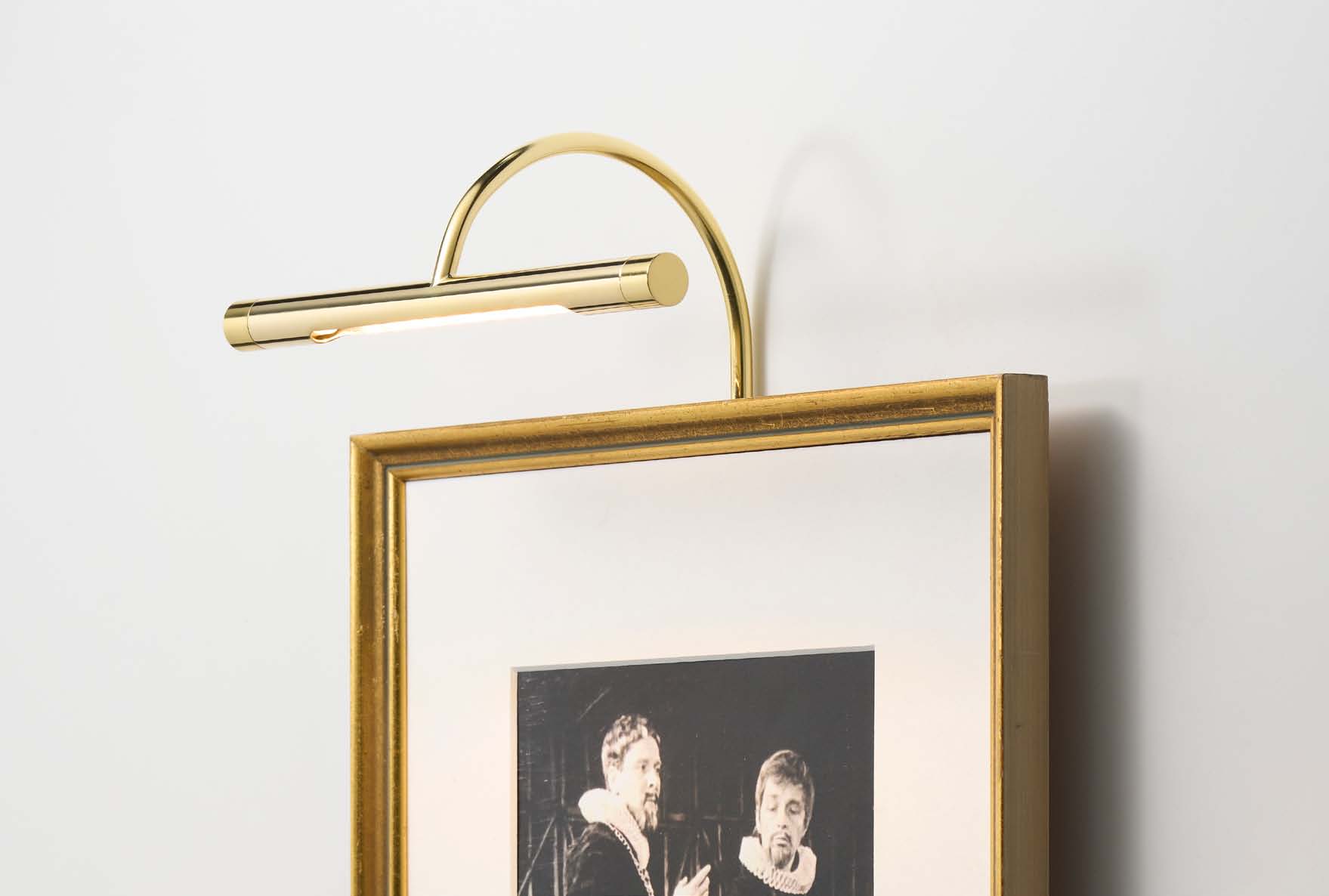

For small pictures or photos, the Mono LED picture light with a single central bracket is an excellent choice. Despite its compact size, it offers high light output. The light can be mounted either on the back of the picture frame or directly on the wall.
Technical Data
Bracket Types:
-
Type 15 (150 mm (5.91″))
Material: Brass
Light source: LED. EEK: F, RA: 90
Ballast: 220 – 240 V
Secondary Voltage: DC 24V
Ballast 20 W: 94 x 36 x 18 mm (3.70″ x 1.42″ x 0.71″)
Light tube: Ø 14 mm (0.55″)
Bracket rod: Ø 6 mm (0.24″)
Bracket extension: 100 mm (3.94″)
LED Colors:
- 2400 Kelvin Warm RA 80+ / 750 Lm / m
- 2700 Kelvin Neutral RA 94+ / 1640 Lm / m
- 3100 Kelvin Daylight RA 94+ / 1680 Lm / m
- 1800-6000 Kelvin Variable RA 90+ / 1596 Lm / m
Light length:
- 140 mm (5.51″) Power: 0.6 Watt
- 240 mm (9.45″) Power: 1.8 Watt
Complete light fixture with LED light source, mounting clamps for installation on the back of the picture frame or on the wall. Dimmable ballast 230V (phase-cut and trailing-edge dimming).
Available in the following surfaces:
