MAXIMUS

picture light

Designed by: Horst Lettenmayer

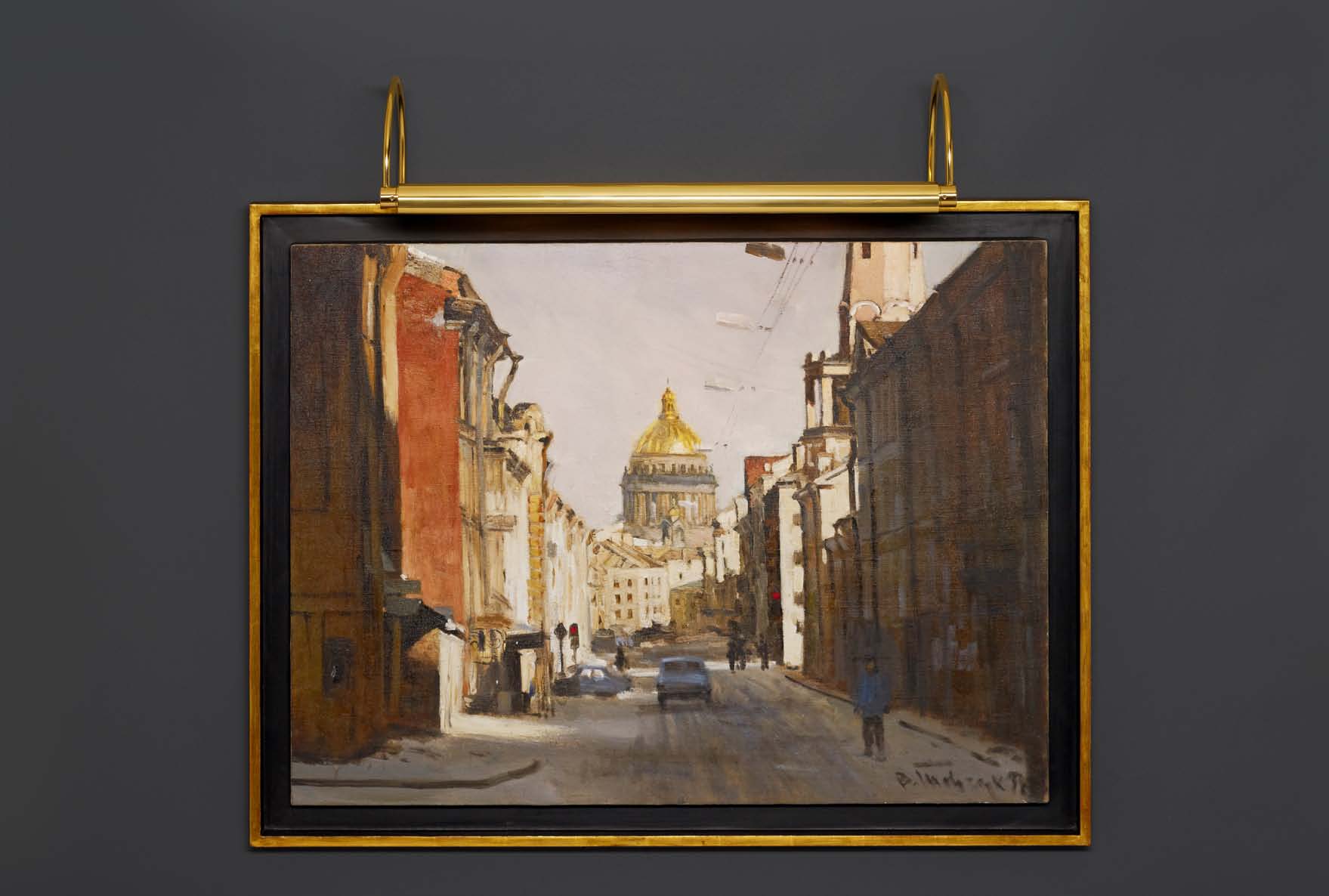

For illuminating large paintings with heavy frames, a larger model is required to balance the proportions between the artwork and the lighting fixture. This led to the creation of the Maximus picture light, capable of covering picture widths of up to two meters without coupling. However, coupling brackets allow the light to be extended as needed. Since large paintings often have significant height, it is necessary to maximize the angle of light projection to reach the bottom of the artwork. The light tube is rotatable and comes with a matte diffuser cover.

Technical Data

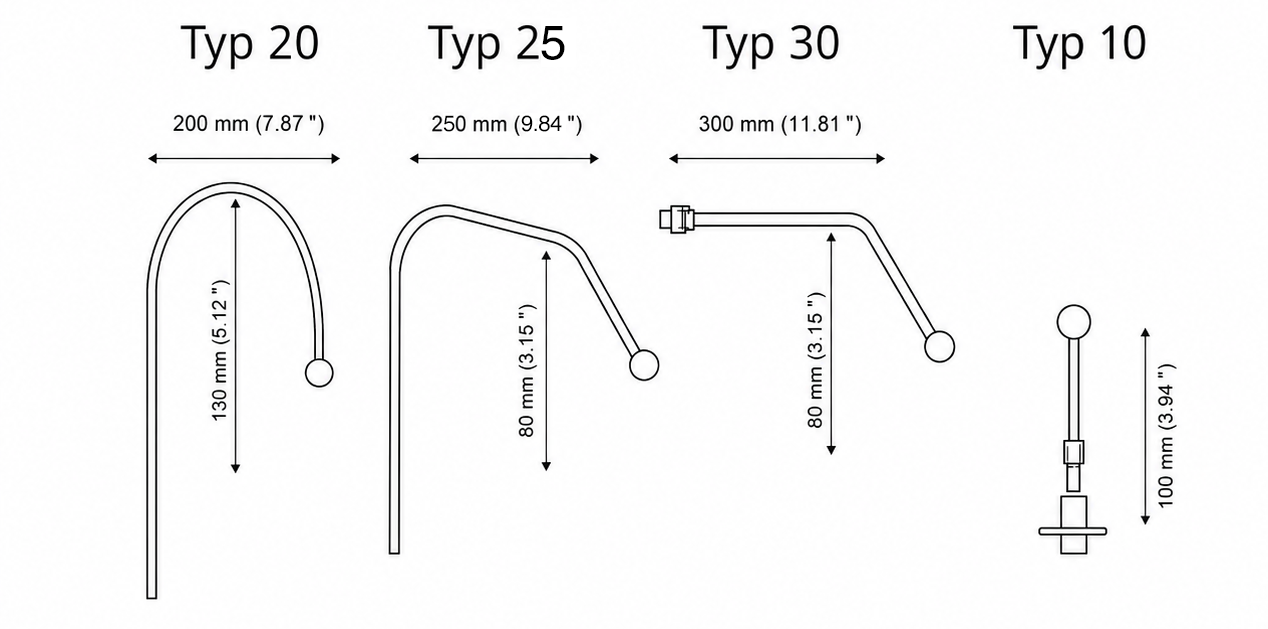

Bracket Types:

Type 20 (200 mm (7.87″))
Type 25 (250 mm (9.84″))
Shelf assembly: Type 30 (300 mm (11.81″))
Wall mounting: Type 10 (100 mm (3.94″))

Material: Brass
Light source: Duo LED, EEK: F, RA: 90
Ballast: 220 – 240 V
Secondary Voltage: DC 24 V
Light tube rotatable: Ø 34 mm (1.34″)
Bracket rod: Ø 8 mm (0.31″)
Ballast 20 W: 94 x 36 x 18 mm (3.70″ x 1.42″ x 0.71″)
Ballast 30 W: 107 x 41 x 22 mm (4.21″ x 1.61″ x 0.87″)
Ballast 60 W: 133 x 46 x 29 mm (5.24″ x 1.81″ x 1.14″)

LED Colors:

2400 Kelvin Warm RA 80+ / 750 Lm / m
2700 Kelvin Neutral RA 94+ / 1640 Lm / m
3100 Kelvin Daylight RA 94+ / 1680 Lm / m
1800-6000 Kelvin Variable RA 90+ / 1596 Lm / m

Light length:

490 mm (19.29″) Power: 12 Watt
650 mm (25.59″) Power: 16 Watt
770 mm (30.31″) Power: 19 Watt
950 mm (37.40″) Power: 24 Watt
1250 mm (49.21″) Power: 33 Watt
1550 mm (61.02″) Power: 42 Watt

Complete light fixture with LED light source, mounting clamps for installation on the back of the picture frame or on the wall. Dimmable ballast 230V (phase-cut and trailing-edge dimming).
