ANGULUS

picture light

Designed by: Horst Lettenmayer

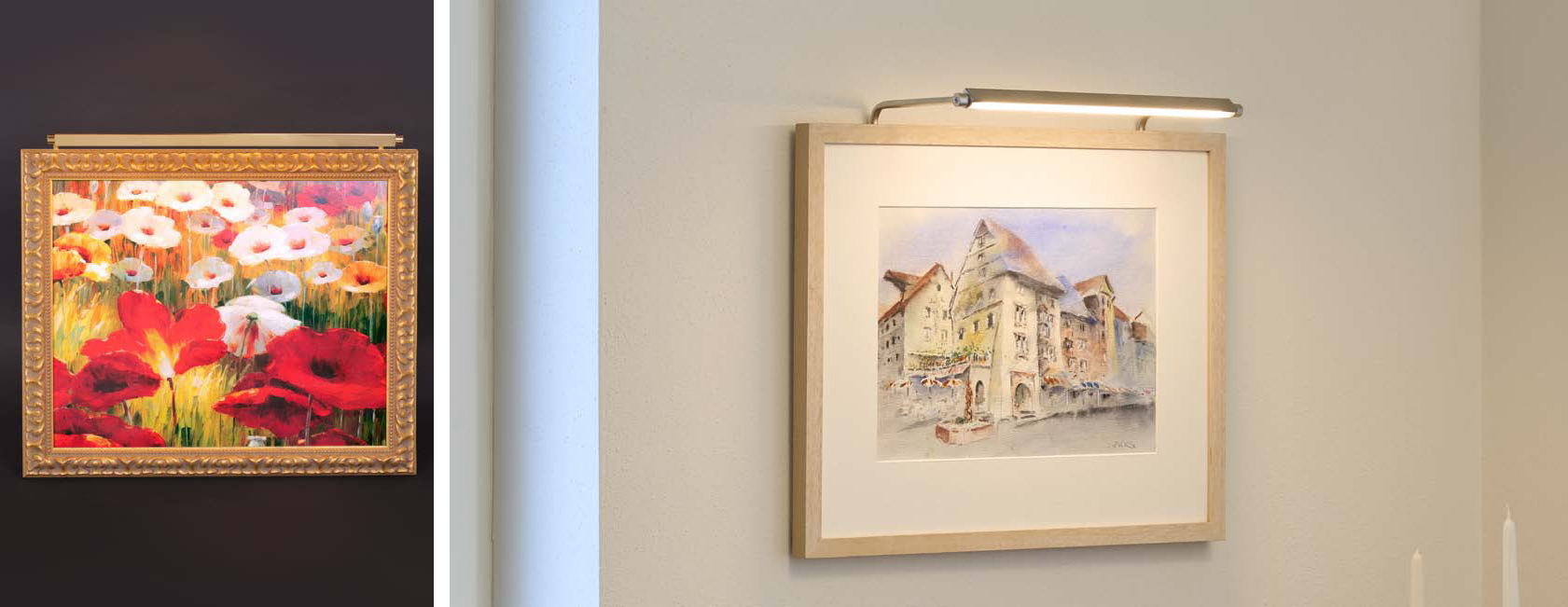

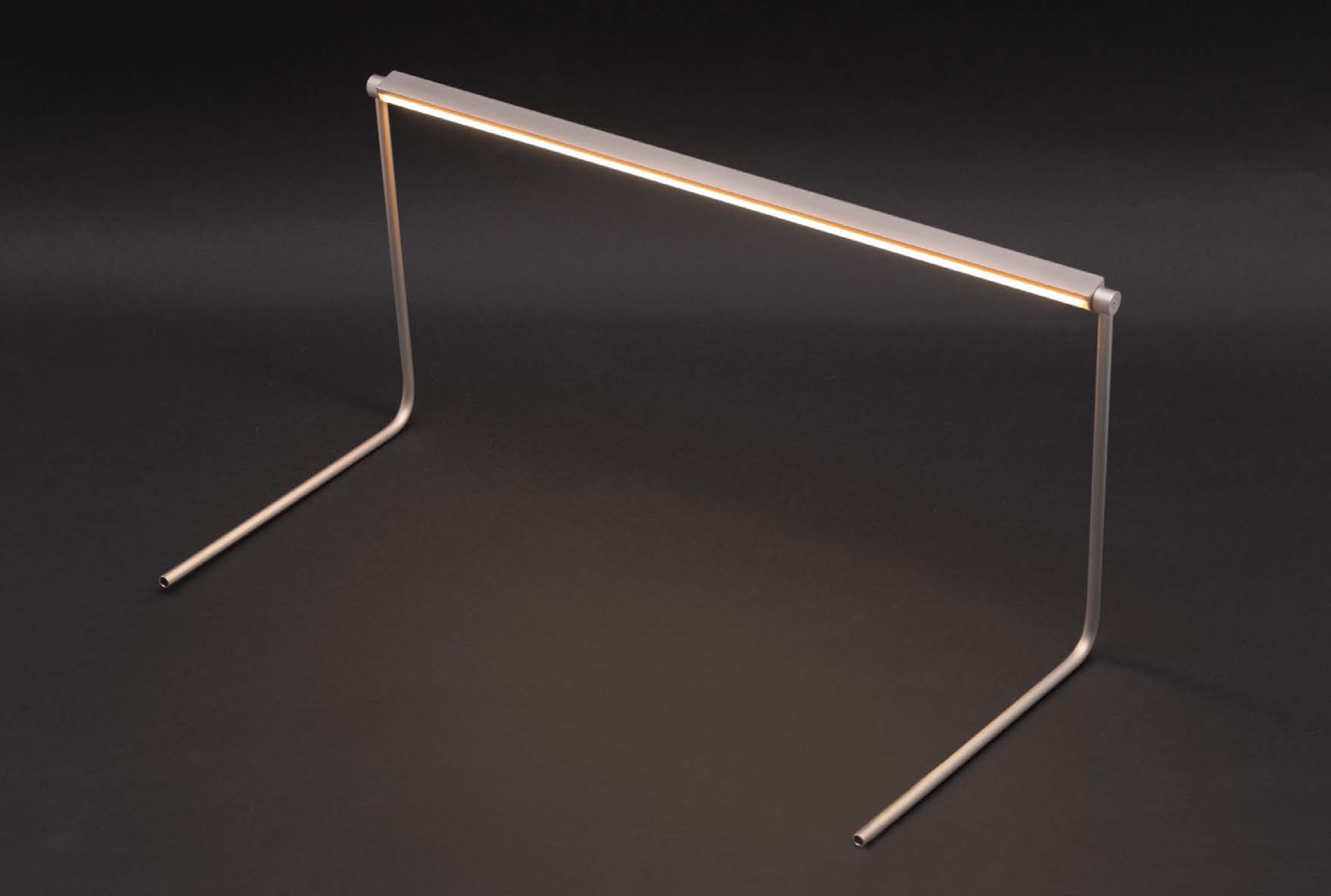

For modern picture frames, this light complements the harmony between light and art. The lighting profile (17×17 mm) is rotatable, allowing the optimal light plane to be adjusted. Years of experience have led to the extension of the brackets to increase the light‘s distance from the painting. Additionally, the light output of this model has been doubled to adequately illuminate larger areas.

For comfortable, glare-free lighting, this model is equipped with a matte diffuser cover.

Technical Data

Bracket Types:

Type 15 (150 mm (5.91″))
Type 20 (200 mm (7.87″))
Type 25 (250 mm (9.84″))

Material: Brass
Light source: Duo LED, EEK: F, RA: 90
Ballast: 220 – 240 V
Secondary Voltage: DC 24V
Ballast 20W: 94 x 36 x 18 mm (3.70″ x 1.42″ x 0.71″)
Ballast 30W: 107 x 41 x 22 mm (4.21″ x 1.61″ x 0.87″)
Light tube rotatable: 17 x 17 mm (0.67″ x 0.67″)
Bracket rod: Ø 8 mm (0.31″)

LED Colors:

2400 Kelvin Warm RA 80+ / 750 Lm / m
2700 Kelvin Neutral RA 94+ / 1640 Lm / m
3100 Kelvin Daylight RA 94+ / 1680 Lm / m
1800-6000 Kelvin Variable RA 90+ / 1596 Lm / m

Light length:

250 mm (9.84″) Power: 6 Watt
500 mm (19.66″) Power: 13 Watt
750 mm (29.53″) Power: 20 Watt
1000 mm (39.37″) Power: 27 Watt

Complete light fixture with LED light source, mounting clamps for installation on the back of the picture frame or on the wall. Dimmable ballast 230V (phase-cut and trailing-edge dimming).
